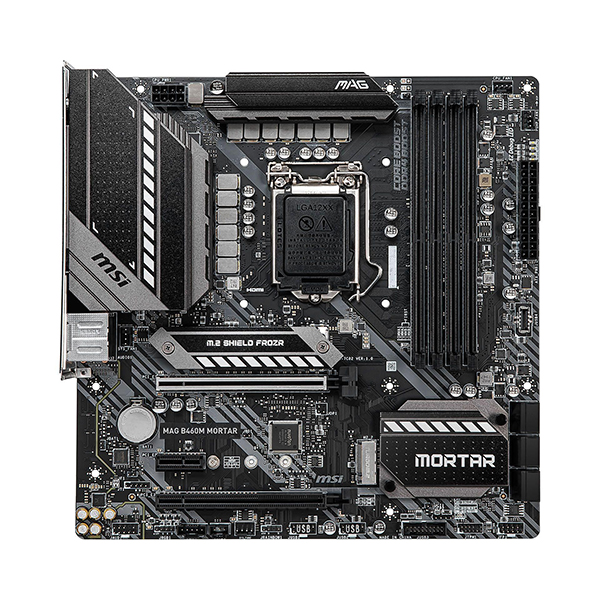

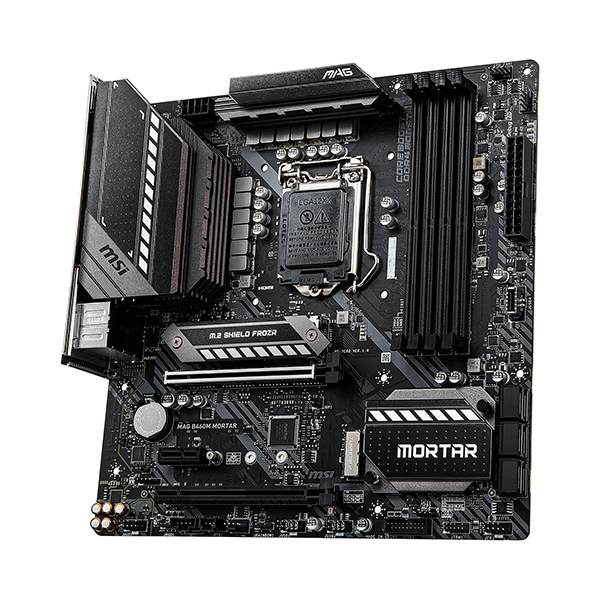

MSI MAG B460M MORTAR

CPU

Supports 10^th Gen Intel^® Core™ and Pentium^® Gold / Celeron^® processors for LGA1200 socket ^{1 2}

1. Please go to intel.com for compatibility information
2. Onboard graphics output are disabled when using the F SKU processors.

Chipset

Intel^® B460 Chipset

Memory

• 4x DDR4 memory slots, support up to 128GB ¹
• Intel^® Core^™ i7/i9
  • Support DDR4-2933 Memory (Max.)
• Intel^® Core^™ i5 (Below)
  • Supports DDR4-2666 Memory (Max.)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

Expansion Slot

• 1x PCIe 3.0 x16 slot (from CPU)
• 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)
• 1x PCIe 3.0 x1 slot (from PCH)

Onboard Graphics

• 1x HDMI port, supports a maximum resolution of 4096×2160 @ 30Hz
• 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

Storage

Intel^® B460 Chipset

• 6x SATA 6Gb/s ports ¹
• 2x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices¹
  • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready for the M2_2 slot only²
  • Supports Intel^® Smart Response Technology for Intel Core™ processors

1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel^® B460 Chipset

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

Audio

Realtek^® ALC1200 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Realtek^® RTL8125B 2.5G LAN Controller

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 3.2 Gen 1 5Gbps Type-C connector
• 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water pump connector
• 2x 4-pin system fan connectors
• 1x front panel audio connector
• 2x system panel connectors
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 1x TBT connector ¹
• 1x RTD3 connector¹

1. Thunderbolt card need support RTD3

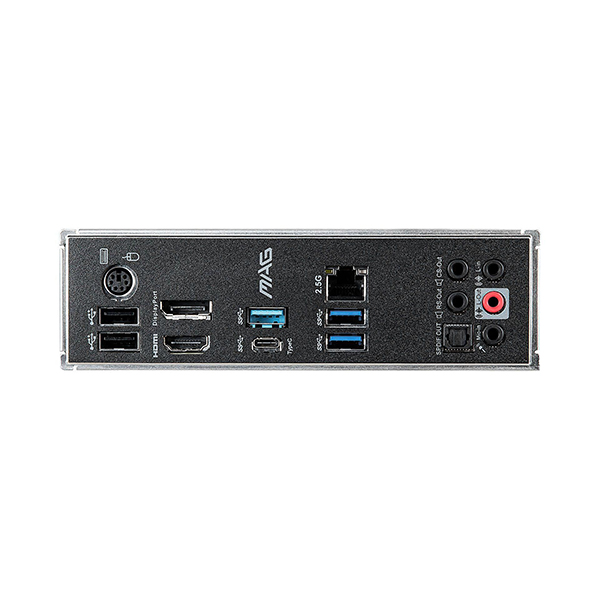

Back panel ports

I/O Controller

NUVOTON NCT6687 Controller Chip

Hardware Monitor

• CPU/System temperature detection
• CPU/System fan speed detection
• CPU/System fan speed control

Form Factor

• mATX Form Factor
• 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)

BIOS Features

• 1x 128 Mb flash
• UEFI AMI BIOS
• ACPI 6.2, SM BIOS 3.2 ∙Multi-language

Box content

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
