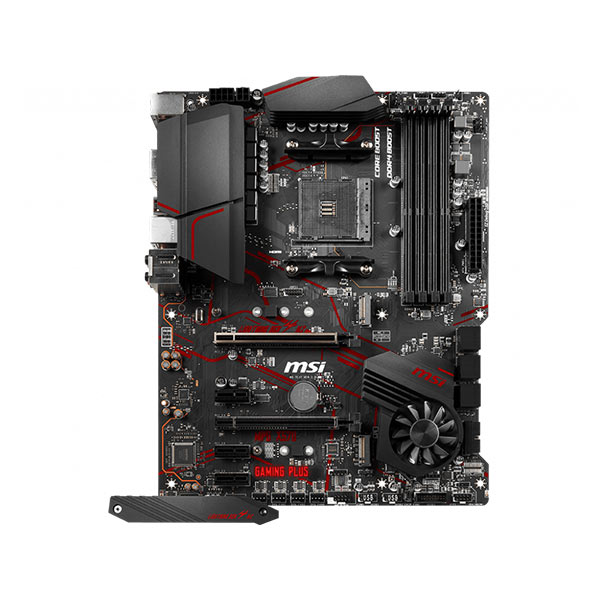

MSI MPG X570 GAMING PLUS

MSI
Availability:

Rupture de stock


la Carte Mére MPG X570 GAMING PLUS est équipé de la conception de dissipateur thermique étendu, de la conception de dissipateur thermique Frozr, du boost de noyau, de Lightning Gen4 M.2, de l’accessoire M.2 Shield Frozr, du Turbo USB et du dernier Dragon Center MSI.

  • Supports 2nd and 3rd Gen AMD Ryzen™
  • Supports DDR4 Memory, up to 4400+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2
  • Frozr Heatsink DesignDesigned with the patented fan
  • Set Core Power Free: Extended Heatsink Design,PWM IC, 8+4 pin CPU
  • MYSTIC LIGHT: 16.8 million colors. MYSTIC LIGHT EXTENSION
  • AUDIO BOOST 4: Reward your ears with studio grade sound quality
  • Dragon Center : A brand new software which integrates all MSI tools

2 790 MAD

Rupture de stock

Processor

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

Chipset

AMD® X570 Chipset

Memory

  • 4x DDR4 memory slots, support up to 128GB
    • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
    • nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

Expansion Slots

  • 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
    • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
    • 2nd Gen AMD Ryzen™ support PCIe 3.0×16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
  • 3x PCIe 3.0 x1 slots1
  1. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
  2. The speeds may vary for different devices

Onboard Graphics

  • 1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz1
  1. Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  2. Maximum shared memory of 2048 MB

Multi-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

Storage

AMD® X570 Chipset

  • 4x SATA 6Gb/s ports(SATA3-SATA6)
  • 2x M.2 slots (Key M)
    • M2_1 slot(from AMD® Processor)
      – Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
      – Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
      – Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD® X570 Chipset)
      – Supports PCIe 3.0 x4 and SATA 6Gb/s
      – Supports 2242/ 2260/ 2280 storage devices

ASMedia ASM1061

  • 2x SATA 6Gb/s ports (SATA1, SATA2)

RAID

AMD® X570 Chipset

  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD® X570 Chipset

  • 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® Processor

  • 2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
  • 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output

LAN

  • 1x Realtek® 8111H Gigabit LAN Controller

Internal connectors

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Clear CMOS jumper
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LEDs

Back panel ports

  1. Keyboard / Mouse
  2. USB 3.2 Gen1 Type-A
  3. LAN
  4. Audio Connectors
  5. Flash BIOS Button
  6. USB 2.0
  7. HDMI
  8. USB 3.2 Gen2 Type-A + C
  9. USB 3.2 Gen1 Type-A
  10. Optical S/PDIF out
MPG X570 GAMING PLUS

Dimensions

  • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
  • ATX Form Factor

Mounting

9 mounting holes

Operating System

  • Support for Windows® 10 64-bit

Box content

MSI MPG X570 GAMING PLUS box content

  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.



  1. All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.
