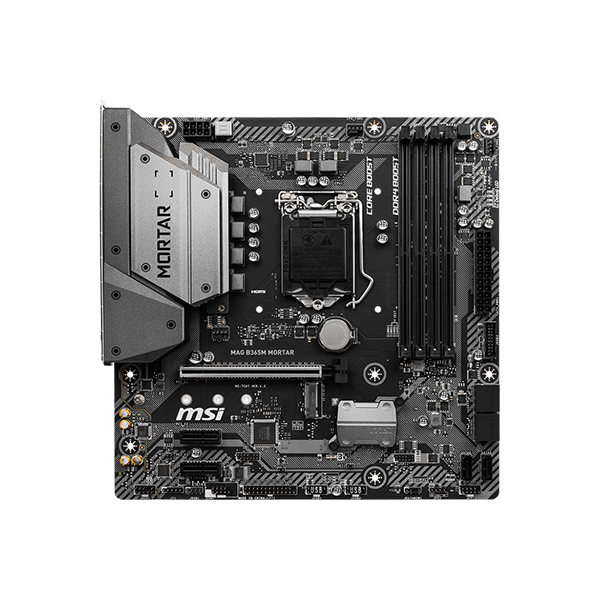

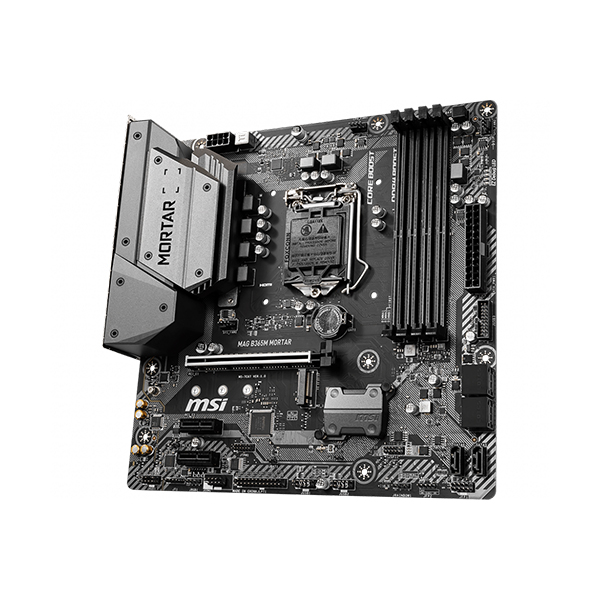

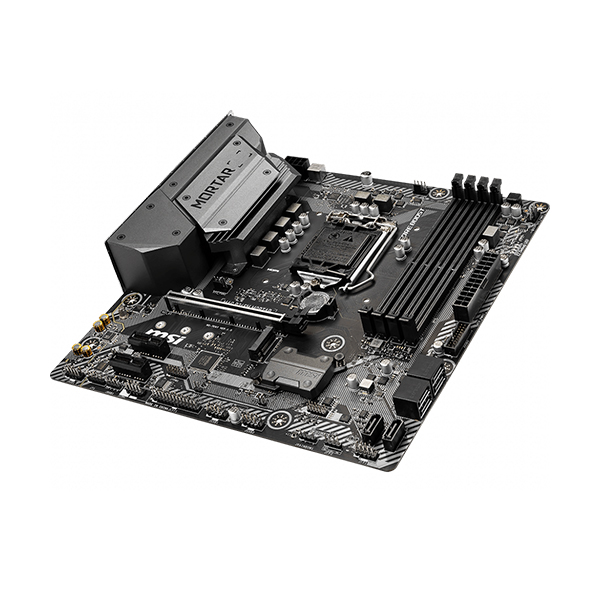

MSI MAG B365M MORTAR

MSI
Disponibilité :

Rupture de stock

La carte mère MSI MAG B365M MORTAR arbore un design sobre et élégant et aura toute sa place dans un PC dédié au travail. Son dissipateur est plus large pour un meilleur refroidissement et elle intègre Core Boost pour une excellente alimentation.

  • Support des processeurs de 8ème et 9ème génération
  • Support de la mémoire DDR4, jusqu’à 2666 MHz
  • Intel Gaming LAN
  • Panneau E/S préinstallé pour une installation plus simple e
  • Dissipateur plus large, technologie Core Boost et DDR4 Boost
  • Slot Turbo M.2 en PCI-E Gen3 x4
  • Mystic Light Extension
  • Dragon Center

1 600 MAD

Rupture de stock

Processor

Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

Chipset

Intel® B365 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

Slots

  • 1 x PCIe 3.0 x16 slot
  • 2 x PCIe 3.0 x1 slots

Onboard Graphics

  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz

*No Display support when using the Processor model with suffix “F”

Storage

Intel® B365 Chipset

  • 6 x SATA 6Gb/s ports1
  • 1 x M.2 slots (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready2
  1. SATA1 port will be unavailable when installing SATA M.2 SSD in M.2 slot.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® B365 Chipset

  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel® B365 Chipset

  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
  • 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Intel® I219-V Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 2 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 4-pin RGB LED connector
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper

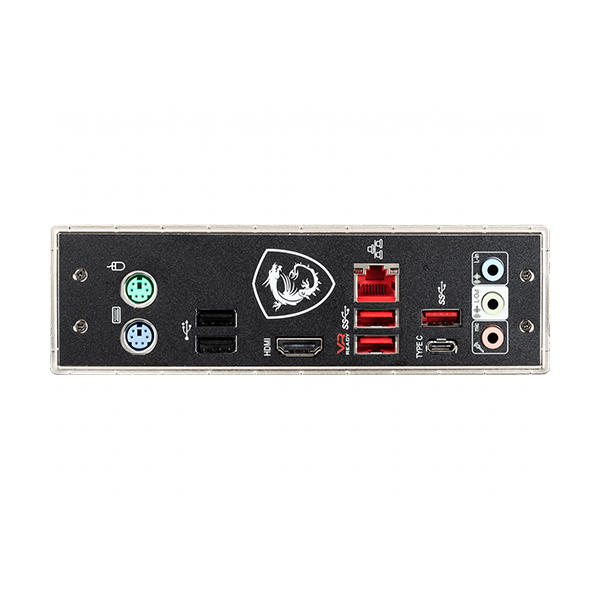

Back panel ports

  1. Mouse Port
  2. Intel GAMING LAN
  3. HD Audio Connectors
  4. Keyboard Port
  5. USB 2.0 ports
  6. HDMI Port
  7. USB 3.1 Gen1 Type-A ports
  8. USB 3.1 Gen1 Type-A+C ports
MSI MAG B365M MORTAR back panel ports

Dimensions

  • 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
  • Micro-ATX Form Factor

Mounting

8 mounting holes

Operating System

  • Support for Windows® 10 64-bit

Box content

MSI MAG B365M MORTAR box content

  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
