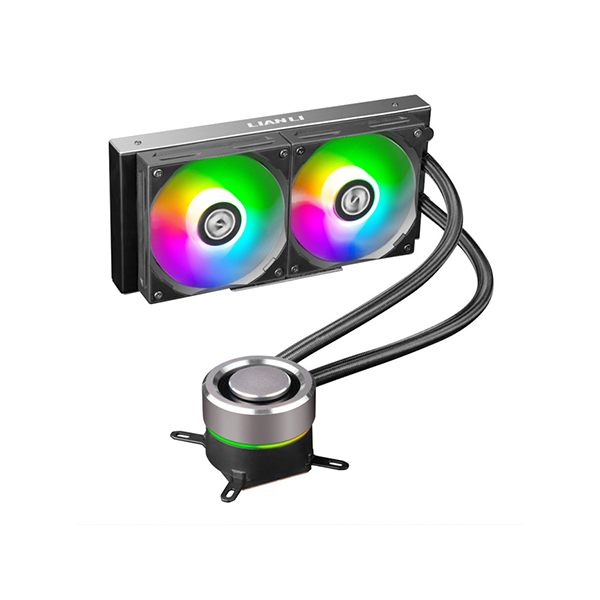

LIAN LI GALAHAD 240 Water Cooling
GALAHAD 240 REFROIDISSEUR DE CPU AIO LIQUIDE SOLUTION DE REFROIDISSEMENT FT. MATÉRIAUX PREMIUM

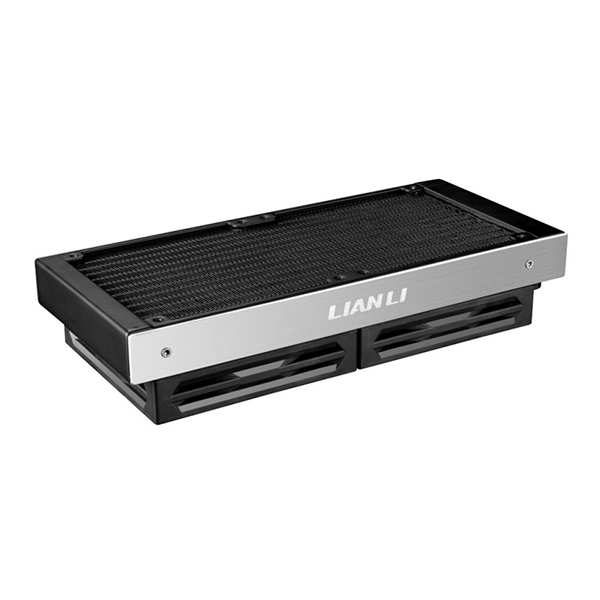

ALUMINIUM SHIELDS ON BOTH SIDES
Both sides of the radiator feature an exquisite brushed aluminium shield, which not only serve as protection for the radiator, ensuring a higher level of durability, but also add an understated metal elegance to your builds.

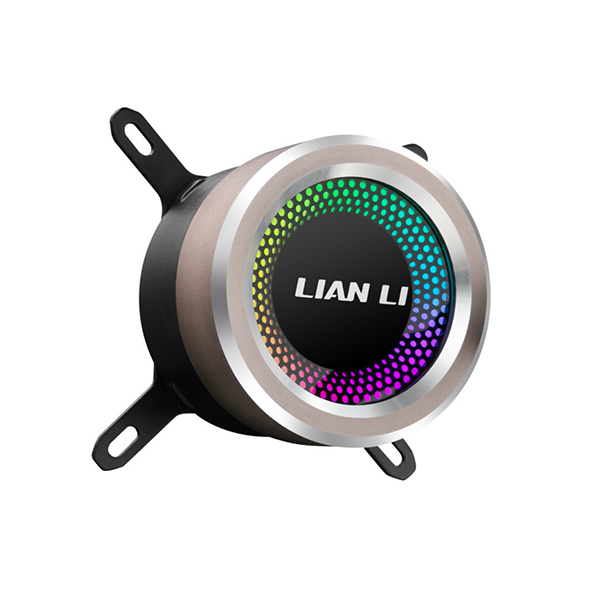

The all-new GALAHAD series features a state-of-the-art triple-chamber pump design which combines the pump chamber, the connecting chamber, and the cold plate chamber into one unit to significantly reduce the friction produced by the coolant’s rapid flow. This design also serves as a protection mechaism to prevent your system from leaks should the CPU block pump be damaged.
MULTI-CHAMBER TECHNOLOGY (M.C.T)
The M.C.T. design separates the hot and cool liquid flow by conveying them into different, sealed water passages, significantly enhancing the heat exchange efficiency and extending the lifespan of the CPU block pump by preventing the hot liquid from flowing back.
HIGH-DENSITY ALUMINIUM RADIATOR
The radiator encompasses 12 rows of aluminium tubes, allowing a maximum amount of liquid to pass through and transfer the heat out of the system efficiently. And thanks to the high-density fin folds between the aluminium tubes, the surface area providing heat dissipation is significantly increased.
|RADIATOR MATERIALS||Aluminum and plastic|
|RADIATOR DIMENSIONS||360mm: (L) 397.5 x 123.5 (H) x 27mm|
240mm: (L) 273 x 123.5 (H) x 27mm
|FAN DIMENSIONS||(L) 120 X (W) 120 X (H) 25 mm|
|FAN SPEED||800±200(30%DUTY) ~ 1900 RPM±10%|
|FAN AIRFLOW||69.17 CFM|
|FAN AIR PRESSURE||2.6 mmH2O|
|FAN MTTF||40,000 Hours|
|FAN POWER CONNECTOR||4-PIN|
|FAN RATED VOLTAGE||12V DC|
|PUMP DIMENSIONS||(L) 87.1 X (W) 74 X (H) 62|
|PUMP MTTF||70,000 Hours|
|PUMP NOISE LEVEL||< 20 dBA|
|PUMP RATED VOLTAGE||12V DC|
|COMPATIBLE CPU SOCKETS||Intel: LGA 115X, LGA 1366, LGA 775,|
LGA 1200, LGA 2011, LGA 2066
(fans and LEDs limited to 2 years)
